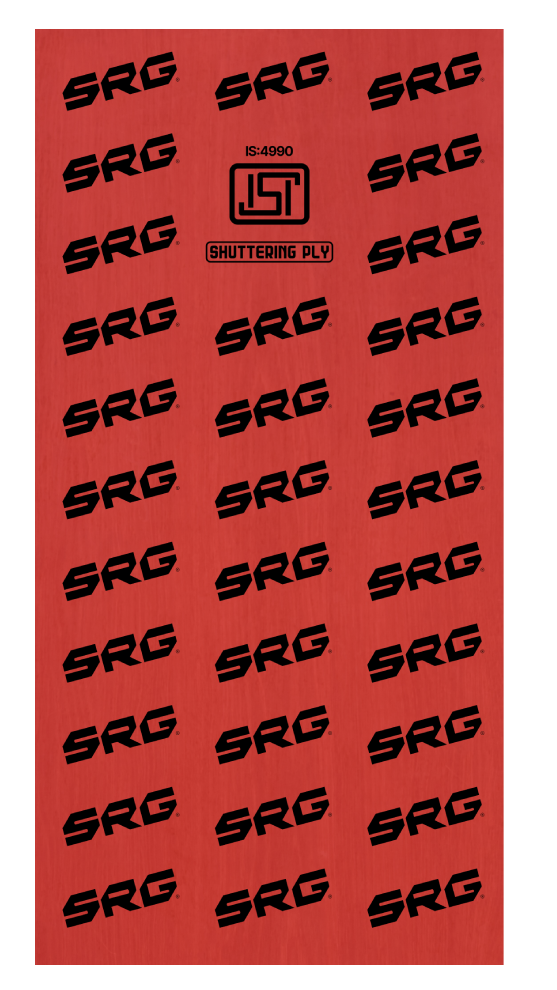

SRG Shuttering Plywood is built for demanding concrete formwork applications where strength, consistency, and durability are essential. Manufactured using SRG’s advanced Heating-Cooling Cycle Process, it delivers dependable performance across residential, commercial, industrial, and infrastructure projects. Trusted by builders, contractors, and developers, it is built to support efficient construction from foundation to finish.
Ideal For
Residential Construction • Commercial Buildings • Infrastructure Projects • Industrial Construction • Concrete Formwork
| Prescribed Test | Value for Conformity | SRG Value |
|---|---|---|
Moisture Content (%)
|
5% To 15% | 7.85% |
Glue Shear Strength (Dry State)
|
Minimum : 1100 N Average : 1350 N |
Minimum : 1250 N Average : 1440 N |
Adhesion of Ply
|
Pass Standard | Excellent Bonding |
Glue Shear Strength (Wet State)
|
Minimum : 800 N Average : 1000 N |
Minimum : 1010 N Average : 1240 N |
Tensile Strength
|
Along the Grain : 28 N/mm² Across the Grain : 26 N/mm² Sum of Tensile Strength (a+b) : 60 N/mm² |
Along the Grain : 41 N/mm² Across the Grain : 36 N/mm² Sum of Tensile Strength (a+b) : 77 N/mm² |
Static Banding Strength (Dry State) - MOE
|
Along the Grain : 6400 N/mm² Across the Grain : 4600 N/mm² |
Along the Grain : 7150 N/mm² Across the Grain : 5120 N/mm² |
Static Banding Strength (Dry State) - MOR
|
Along the Grain : 43 N/mm² Across the Grain : 35 N/mm² |
Along the Grain : 47.5 N/mm² Across the Grain : 39 N/mm² |
|
Static Banding Strength (Wet State) - MOE
|
Along the Grain : 3200 N/mm² Across the Grain : 2300 N/mm² |
Along the Grain : 3875 N/mm² Across the Grain : 2890 N/mm² |
|
Static Banding Strength (Wet State) - MOR
|
Along the Grain : 21 N/mm² Across the Grain : 17 N/mm² |
Along the Grain : 29 N/mm² Across the Grain : 22 N/mm² |
Water Resistance Test
|
No Delamination After 72 Hours Boiling at 100°C | No Delamination |
Formaldehyde Content Test
|
>8 mg /100 g to ≤30 mg /100 g | >10 mg /100 g to 27 mg /100 g |
Size in feet: 8×4
Thickness: 12mm
Weight: 30Kgs & 34Kgs
